Yuneec Hunter Drone H520E

Yuneec Hunter Drone H520E

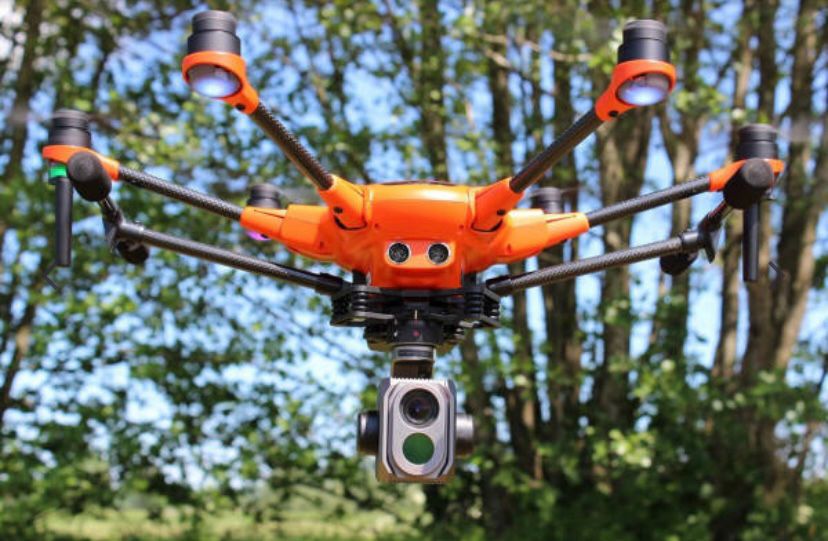

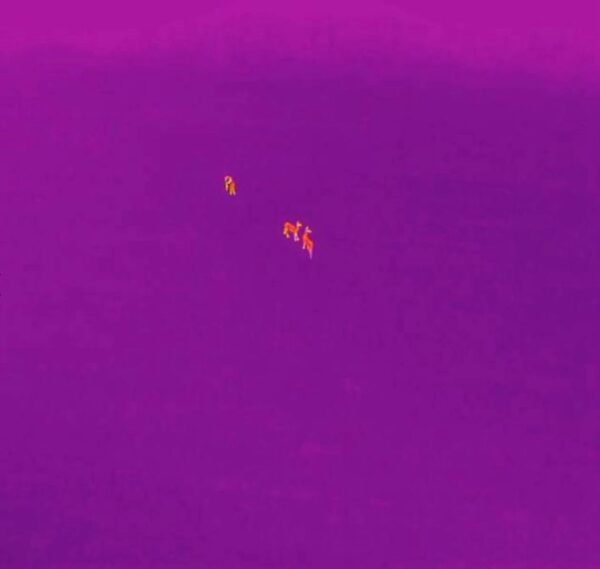

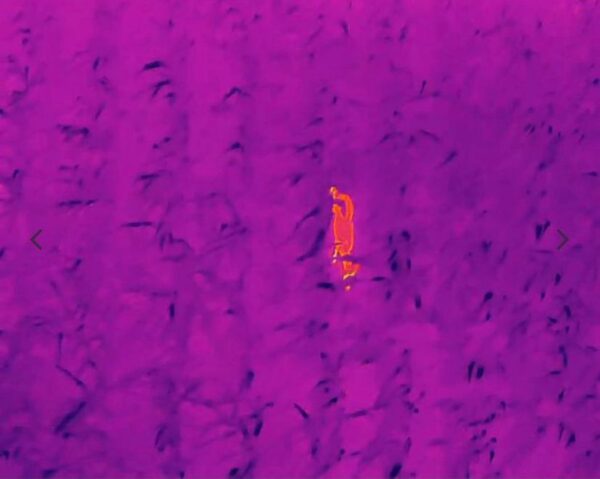

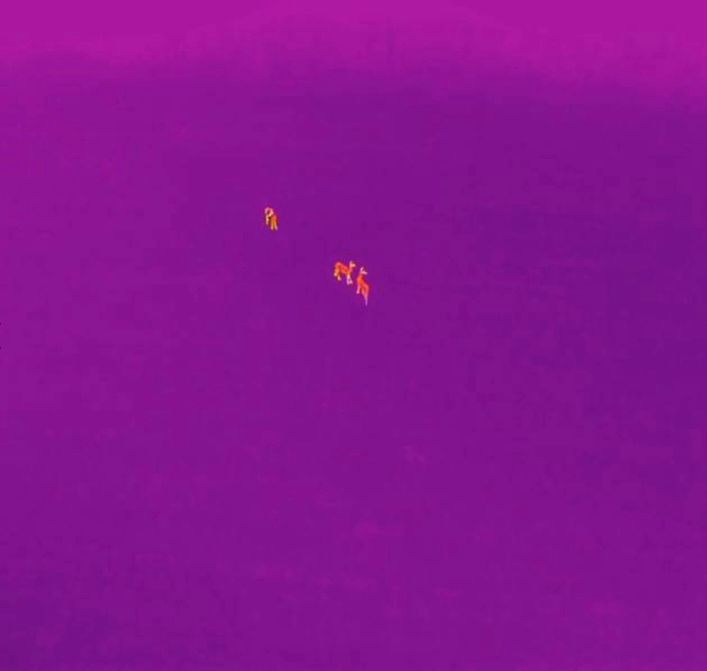

The Yuneec Hunter H520E drone with the E20Tvx thermal camera represents a top-tier professional drone designed for precise thermal and optical missions in hunting, industrial, security, and inspection applications. This system delivers high mobility and accuracy, making it ideal for field and meadow surveys before mowing, with the aim of detecting the presence of wildlife in time. It effectively prevents wildlife casualties during agricultural operations, making it an extremely valuable tool for hunters, farmers, and environmental organizations. The drone also excels at locating injured game.

Key Features of the Yuneec H520E with E20Tvx Camera

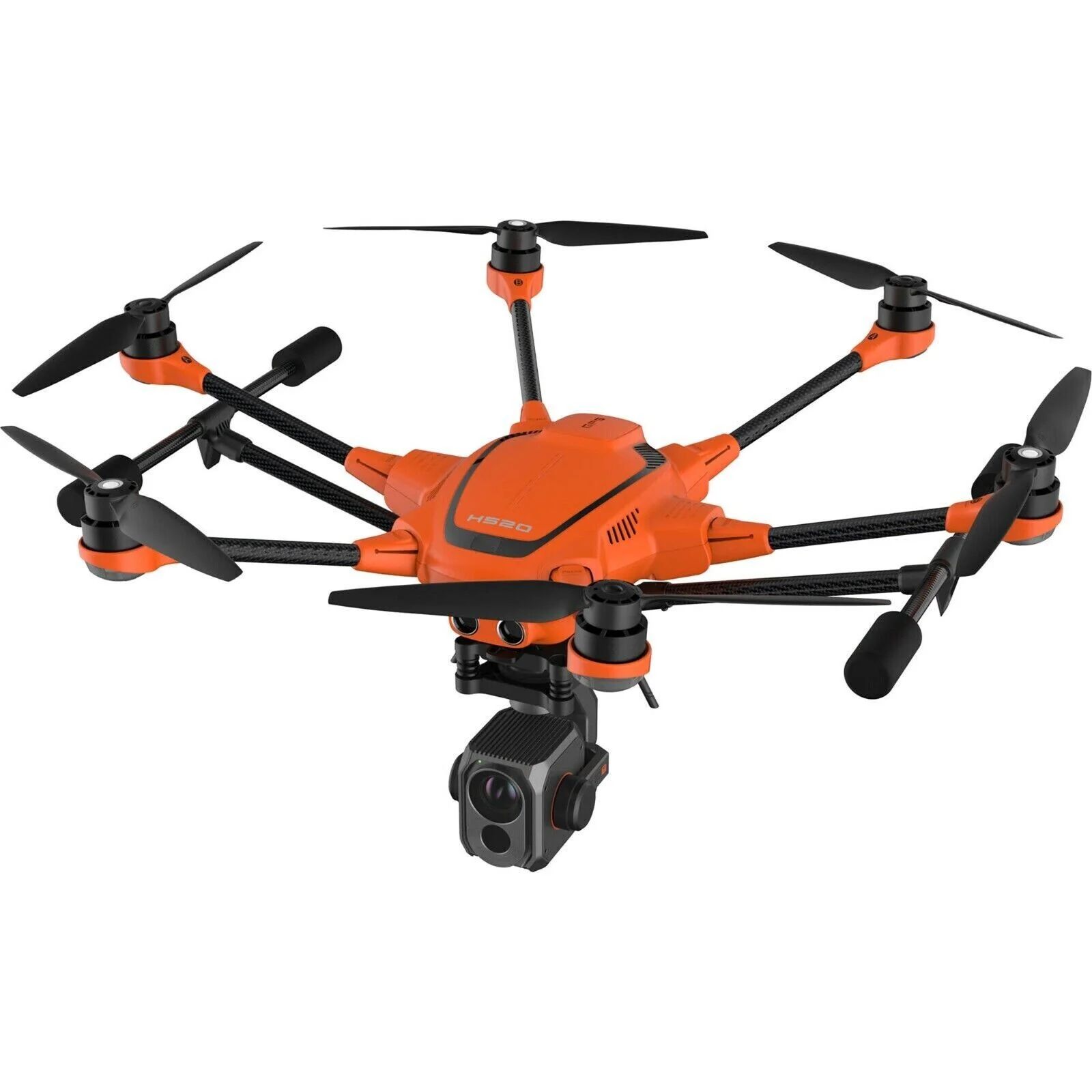

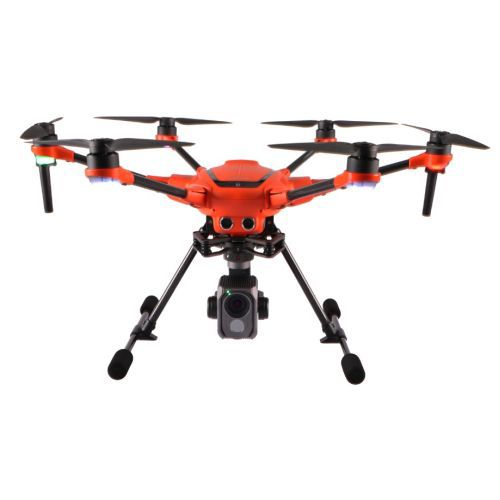

Yuneec H520E – Professional Hexacopter

• 6-Rotor System: Ensures flight stability and safety, even in the event of a single motor failure.

• Modular Design: Allows for quick camera swaps (E20Tvx, E90X, E30ZX) without powering down the drone.

• Range and Autonomy: Flight time up to 28 minutes with the E20Tvx camera.

• ST16E Ground Station: Android-based 7″ touchscreen with mission planning capabilities via DataPilot™ software.

• Integrated Obstacle Avoidance System: Forward-facing ultrasonic sensor prevents collisions.

• Compatibility: Supports RTK modules for centimeter-level precision in geodetic applications.

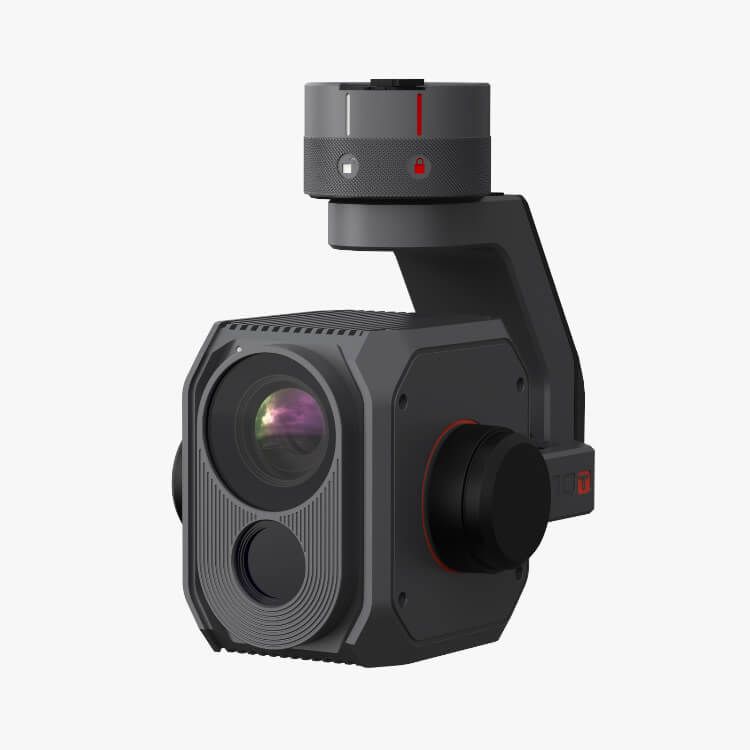

E20Tvx Camera – Radiometric Thermal and Optical Camera

Thermal Sensor

• Resolution: 640 × 512 pixels

• Sensor: Uncooled VOx microbolometer

• Spectral Range: 8–14 μm (LWIR)

• Sensitivity: <50 mK

• Field of View (H × V): 33° × 26.6°, diagonal 41.4°

• Frame Rate: 25 Hz

• Temperature Measurement Ranges:

  • High Gain: -20°C to 150°C

  • Low Gain: 100°C to 500°C

• Automatic Temperature Compensation: Ensures accurate readings under various conditions

• Image Format: JPEG

• Video Format: MP4

Optical Sensor

• Sensor: 1/2.8″ CMOS, 2.13 MP

• Lens: 23 mm, F2.8

• ISO Range: 100–3200

• Shutter Speed: 1/30 to 1/8000 s

• Video Resolution: Full HD (1920 × 1080) at 60 fps

• Field of View: 90° diagonal

Gimbal

• Precision: ±0.02°

• Tilt Range: -110° to +30°

• Pan Range: ±165°

• Tilt Speed: 30°/s

• Pan Speed: 120°/s

• Operating Temperature: -10°C to +40°C

🎯 Ideal Applications

• Infrastructure Inspection: Bridges, power lines, solar panels

• Security and Surveillance: Site monitoring, search and rescue

• Firefighting: Fire detection and heat source tracking

• Geodesy and Mapping: High-precision terrain mapping

• Law Enforcement and Security Services: Object monitoring and analysis

Package Contents

• Yuneec H520E Drone: 6-rotor flight system

• E20Tvx Camera: Radiometric thermal and optical camera

• ST16E Ground Station: Controller with 7″ touchscreen

• Batteries and Charger: For both drone and controller

• Manuals and Documentation: For safe operation
